Description
Product Overview

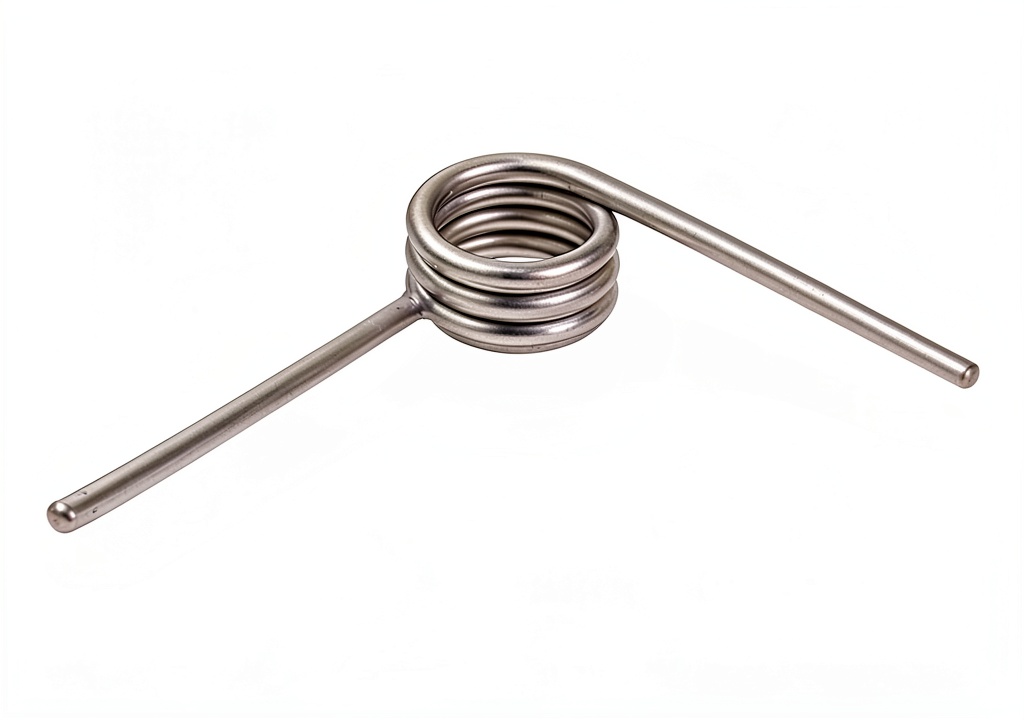

Engineered for durability and precision, this 302 stainless steel torsion spring features a left-hand wind direction and 90-degree unloaded deflection. Constructed with high-grade stainless steel for enhanced corrosion resistance, it is ideal for demanding industrial environments. With a 0.357-inch outer diameter and 0.045-inch wire size, it ensures compatibility with various machinery and power transmission systems. Manufactured by Associated Spring Raymond, this spring meets ASTM A313 and AMS 5688 standards for consistent quality and performance.
Usage
Commonly used in industrial automation, robotics, and mechanical systems where torsional force is required. Suitable for applications requiring long-term reliability in corrosive or humid environments. Ideal for machinery, conveyor systems, and power transmission devices. The straight torsion ends allow for easy integration into custom assemblies.
Why Choose Us
Our torsion springs are manufactured to meet strict industry standards, ensuring consistent performance and longevity. The 302 stainless steel material provides superior resistance to rust and chemical exposure. Each spring is precision-engineered for accurate torque and deflection. The left-hand wind direction offers compatibility with specific mechanical designs. We offer reliable customer support and technical assistance for installation and troubleshooting.
Key Features
- 302 stainless steel construction for enhanced corrosion resistance compared to standard music wire
- Left-hand wind direction for compatibility with specific mechanical systems
- 90-degree unloaded deflection for precise torque control in applications
- Straight torsion ends for easy integration into custom assemblies and machinery
- Meets ASTM A313 and AMS 5688 standards for quality assurance and reliability
- Compact 0.357-inch outer diameter and 0.045-inch wire size for space-efficient installations
- 1.25-inch leg length and 0.203-inch mandrel size for compatibility with standard equipment
- 0.259-inch minimum axial space for optimal clearance in tight applications
- Manufactured by Associated Spring Raymond for consistent quality and performance
- Customer support available for technical assistance and installation guidance
FAQ
What is the material of this torsion spring?
This torsion spring is made from 302 stainless steel, which offers superior corrosion resistance compared to standard music wire, making it ideal for industrial environments with exposure to moisture or chemicals.
What is the deflection angle of this spring?
The unloaded deflection angle is 90 degrees, providing precise torque control for applications requiring consistent angular displacement.
What are the dimensions of this spring?
The spring has a 0.357-inch outer diameter, 0.045-inch wire size, 1.25-inch leg length, 0.203-inch mandrel size, and 0.259-inch minimum axial space for optimal fit and clearance.
What standards does this spring meet?
This spring meets ASTM A313 and AMS 5688 standards, ensuring quality assurance and reliability for industrial applications.
Is this spring suitable for outdoor or humid environments?
Yes, the 302 stainless steel construction provides excellent resistance to corrosion, making it suitable for outdoor or humid environments where standard springs may degrade.
